Drill Winch
Stock: Some
$3,599.00 inc GST
SKU: DW3

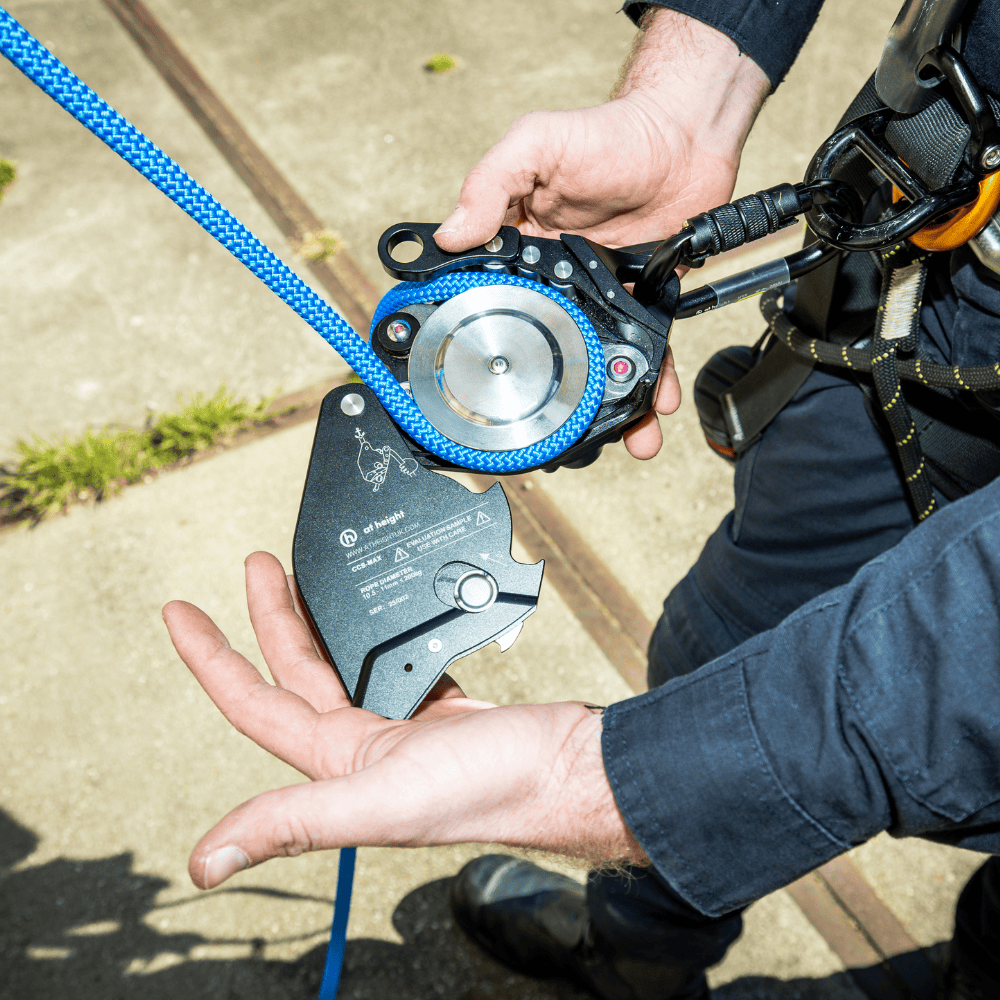

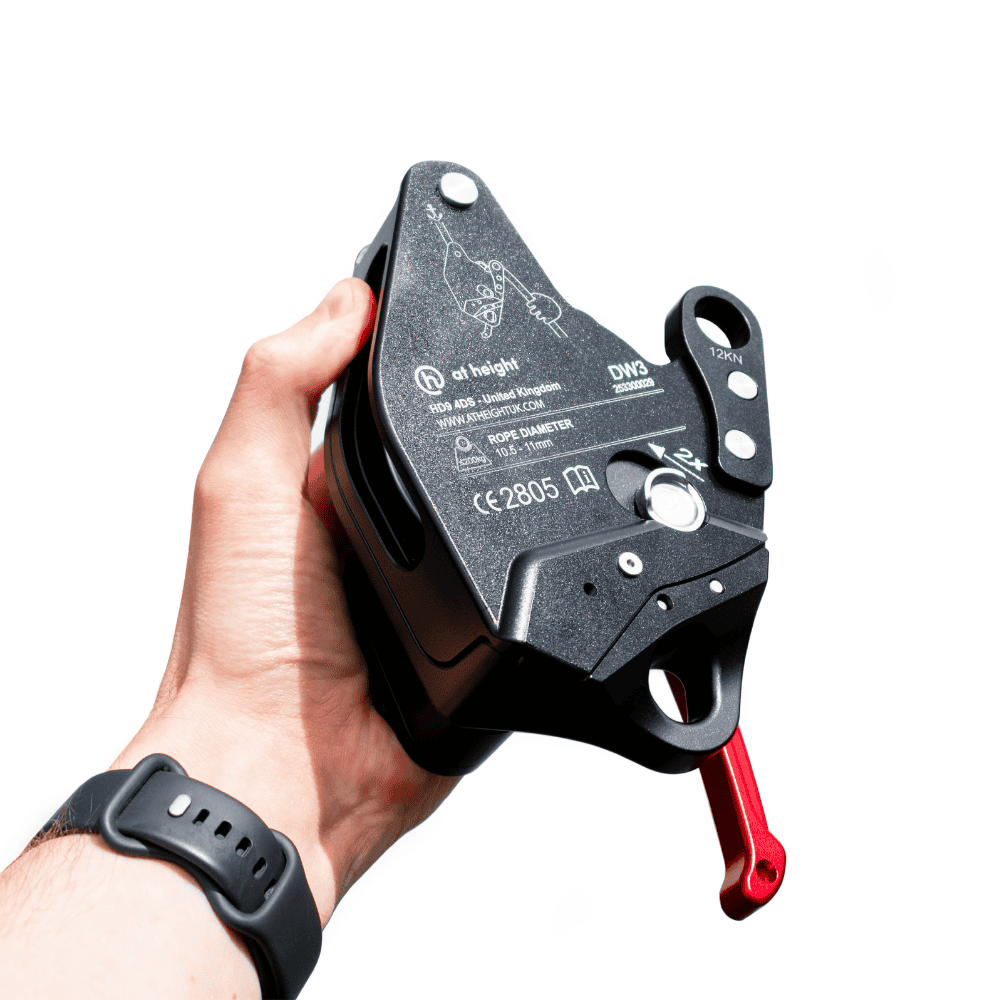

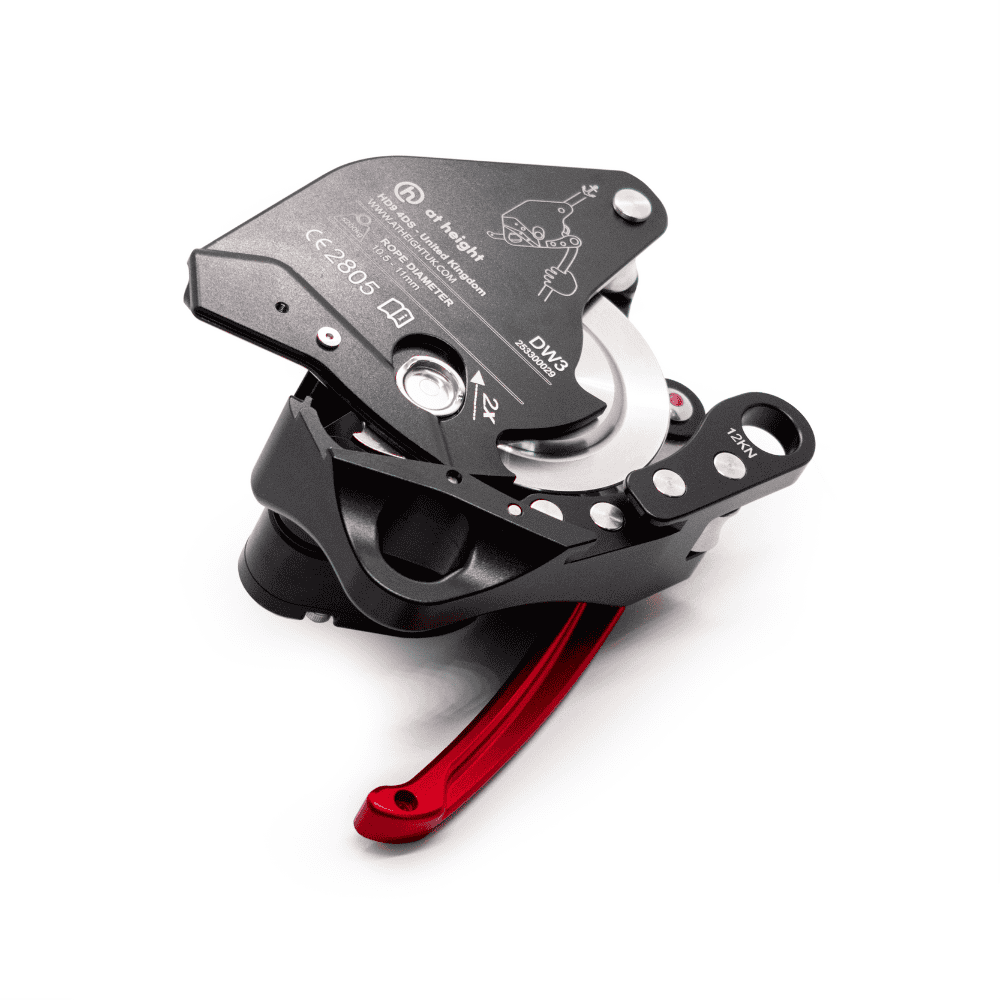

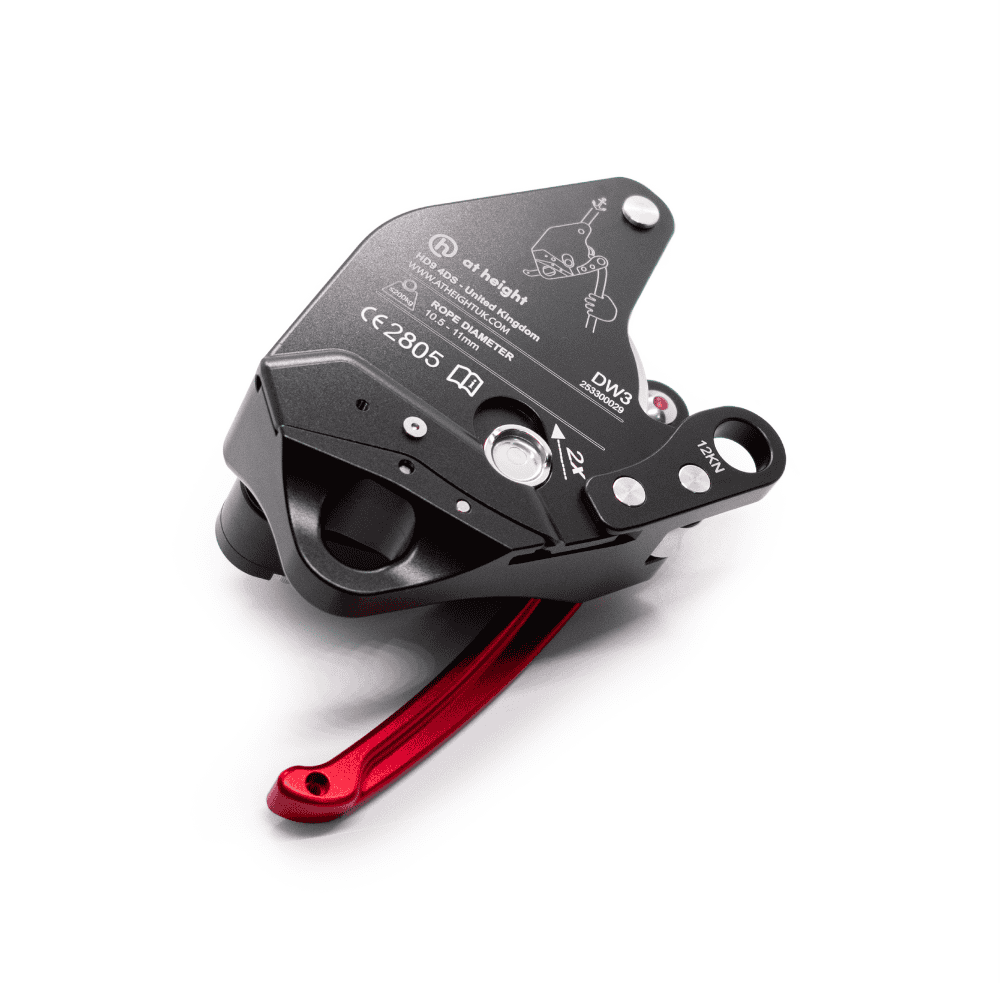

The DW3 Drill Winch by At Height is designed for lifting and lowering both people and materials. This versatile machine is suitable for various applications, including:
- Work at height
- Rescue operations
- Rigging
- Materials handling
The DW3 has received certification from a Notified Body in compliance with the Machinery Directive 2006/42/EC Annex 4, part 17, and meets the Essential Health and Safety Requirements outlined in Annex 1.
Specifications
- Maximum Rated Load: 200 kg when using 10.5 mm/11 mm rope
- Rope Diameter Range: Ø 10.5 & 11mm to EN1891A
- Dimensions: 160 x 120 x 85mm
- Becket MBS: 12kN
- Weight: 1.5kg
- Material: Aluminium & Stainless Steel
- Gearing: 8:1
- Standards: Machinery Directive 2006/42/EC Annex 4
Each unit is securely packaged in a hard plastic case and comes with spare hex keys. For enhanced traceability, every device is individually serial numbered.
To ensure optimal performance, we recommend using a brushless drill with a torque rating exceeding 100 Nm.
Download: Technical Datasheet
